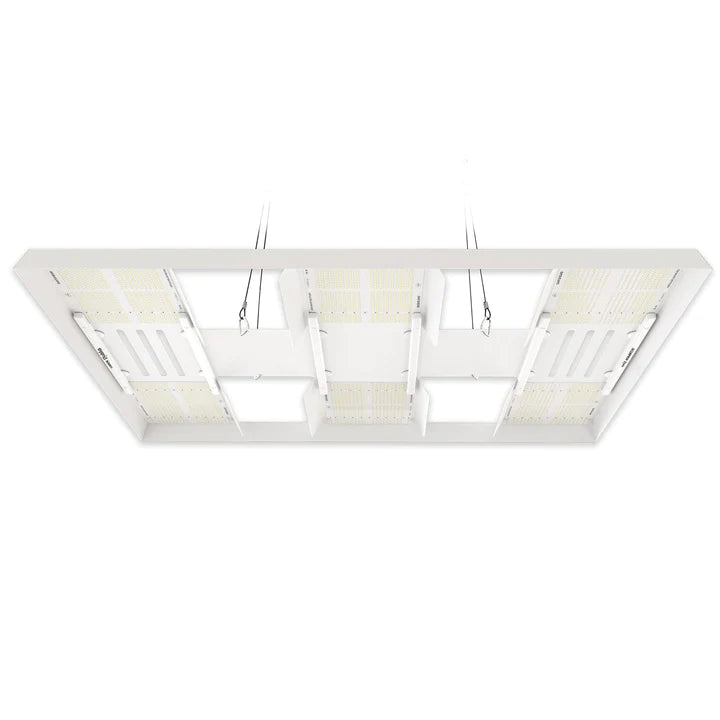

HLG Scorpion Diablo is designed for grows with low ceiling heights or for vertical racks. HLG Scorpion Diablo uses 6x QB648 Diablo Quantum Boards® for an even light spread at just 12" from the canopy. This is a very efficient full spectrum horticulture lamp with an efficiency of 2.9 PPF/W.
HLG Scorpion Diablo Manual
Independent Efficiency Lab Report
Independent PPFD Report
TOP FEATURES
- Designed for low ceiling heights or vertical racks
- Highest efficiency full spectrum grow lamp
- Full Spectrum White and 660nm Red
- Reliable passive-cooled design
- Better canopy light penetration with diffused light
- Dimmable power supply included
- Auto sensing Inventronics or Meanwell power supply works on both 120VAC and 240VAC and 277VAC
- 5 Year warranty
SPECIFICATIONS
| Power | 60-650 Watts |
| Voltage Range | 120-277 VAC 50-60Hz |
| LED | Samsung LM301H & Deep Red |
| Flowering Footprint | 5' x 5' at 18" |
| Veg Footprint | 6' x 6' at 24” |
| System PPF Efficacy | 2.9 μmol/joule |
| Total output | 1900 PPF |
| Dimensions | 38.5" x 36" x 2.75" |
| Recommended Mounting Height | 12-18 inches above canopy |
| Certifications | UL 8800, UL 1598, CSA |
